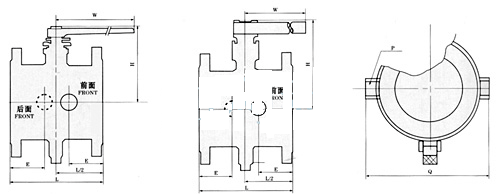

保溫球閥 BQ41

主要零件材質

1.6MPa主要連接尺寸

尺寸	in	3/4"	1"	1-1/2"	2"	3"	4"	6"	8"
	DN	20	25	40	50	80	100	150	200
L	mm	117	127	165	178	229	254	292	330
H	mm	101	106	125	135	193	265	355	410
W	mm	160	160	230	230	400	650	1050	1050
E	mm	58.5	63.5	62.5	68	82	83	95	100
P	in	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT1
法蘭規格	mm	40	50	65	80	150	200	250	350

2.5-4MPa主要連接尺寸

尺寸	in	3/4"	1"	1-1/2"	2"	3"	4"	6"	8"
	DN	20	25	40	50	80	100	150	200
L	mm	117	127	165	178	229	254	292	330
H	mm	101	106	125	135	193	265	355	410
W	mm	160	160	230	230	400	650	1050	1050
E	mm	58.5	63.5	62.5	68	82	83	95	100
P	in	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT1
法蘭規格	mm	40	50	65	80	150	200	250	350

150Lb主要連接尺寸

尺寸	in	3/4"	1"	1-1/2"	2"	3"	4"	6"	8"
	DN	20	25	40	50	80	100	150	200
L	mm	117	127	165	178	229	254	292	330
H	mm	101	106	125	135	193	265	355	410
W	mm	160	160	230	230	400	650	1050	1050
E	mm	58.5	63.5	62.5	68	82	83	95	100
P	in	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT1
法蘭規格	in	1-1/2"	2"	2-1/2"	3"	6"	8"	10"	14"

300Lb主要連接尺寸

尺寸	in	3/4"	1"	1-1/2"	2"	3"	4"	6"	8"
	DN	20	25	40	50	80	100	150	200
L	mm	117	127	165	178	229	254	292	330
H	mm	101	106	125	135	193	265	355	410
W	mm	160	160	230	230	400	650	1050	1050
E	mm	58.5	63.5	62.5	68	82	83	95	100
P	in	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT3/4	NPT1
法蘭規格	in	1-1/2"	2"	2-1/2"	3"	6"	8"	10"	14"
